Ceiling Suspended Laminar Air Flow System

Ceiling Suspended Laminar Air Flow Manufacturer

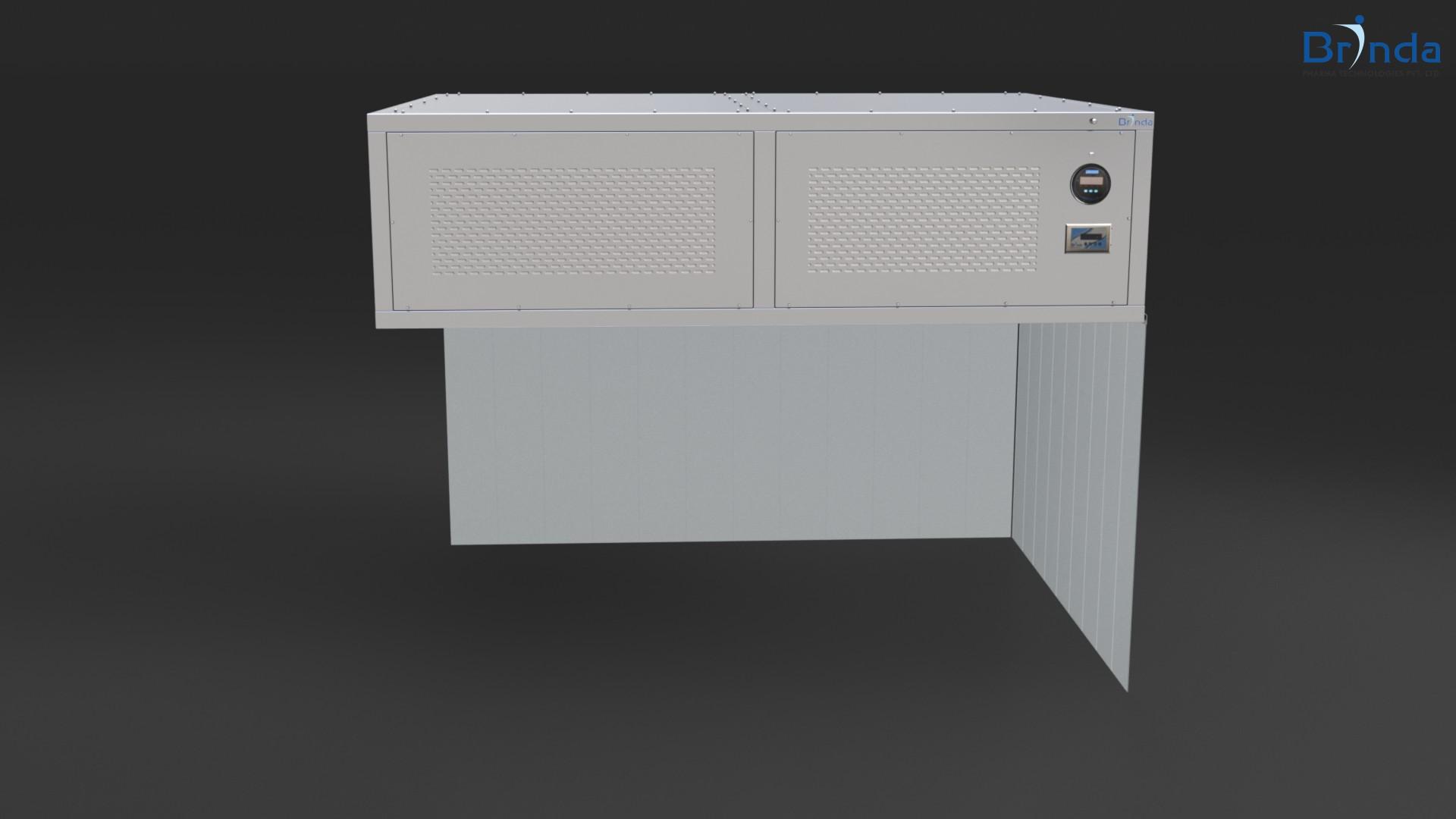

Ceiling Suspended Laminar Air Flow, Also known as CLAF

Laminar Air Flow systems provide steady and uni-directional, with the entire body of air in the room moving with a low uniform velocity in parallel planes. In rooms equipped with Laminar Flow Patterns, the idea is to have a steady, turbulence-free flow of absolutely clean air to bathe the occupants and equipment. Under this condition of a piston-like delivery of air, the air will migrate over all surfaces.

Laminar Air Flow systems are used for filling line systems, Autoclave loading, and unloading applications where a constant Laminar Air flow is required.

CLAF Features, Accessories & Applications

HEPA Filter H14 filter for supply air and exhaust air
Magnehelic Differential Pressure gauge
Available in SS 304, cGMP compliant design
Easy to clean and disinfect
Openable covers for easy maintenance.
Pre-installed White Light
Auxiliary Power Socket
Feather-touch controller for operations
Sound level >65 dB and <85 dB on scale
Power supply single phase 220v 50hz

CG Screen
PVC Curtains up to the working height or floor level
S.S. Covers for the gap between Ceiling and LAF for improved GMP Practice
Panel Mounted Control Panel Box
Flame Proof Fittings
PLC-based controller & Touch Screen HMI
Audio-Video Alarm for high-low pressure

Filling Lines
Pharmaceutical Industry
High-end electronics
Medical Industry (Operation Theatre)
Research & Development Laboratories
Space Industry
Nano Technologies

Previous slide

Next slide

Model	External Dimensions (W X D X H) mm	Construction
CLAF-750-750	750 X 750 X 600	S.S. 304
CLAF-900-750	900 X 750 X 600	S.S. 304
CLAF-900-900	900 X 900 X 600	S.S. 304
CLAF-1200-750	1200 X 750 X 600	S.S. 304
CLAF-1200-900	1200 X 900 X 600	S.S. 304
CLAF-1500-900	1500 X 900 X 600	S.S. 304
CLAF-2200-900	2200 X 900 X 600	S.S. 304
CLAF-2500-1200	2500 X 1200 X 600	S.S. 304
CLAF-3000-2500	3000 X 2500 X 600	S.S. 304
CLAF-3500-2000	3500 X 2000 X 600	S.S. 304

We at Brinda Pharma are committed to fulfilling the needs of our clients; that’s why we do 100% customization based on your needs.

For complete Customization, We follow the standard practice of understanding the URS – User Requirement Specification. Even if you don’t have URS, our experienced Sales Team can guide you to make one or choose one from the Industry Standards.

All Ceiling Suspended Laminar Air Flow comes with the following:

DQ (Design Qualification)
FAT (Factory Acceptance Test)
Quality & Test Certificates For All Components (Traceability Certificate)
IQ (Installation Qualification)
OQ (Operation Qualification)
Maintenance Manual
Spare Part List
Warranty Certificate
